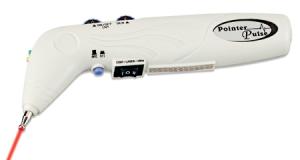

The next generation handheld locator/stimulator! The Pointer Pulse is the first all-in-one unit that combines laser therapy with electrical stimulation, allowing both methods of treatment to be used simultaneously or separately.

The device measures relative skin resistance at the treatment location through sound as well as a green light indicator found on the top of the unit. Location sensitivity and sound level are adjustable.

An effective push button adjustable stimulation offers immediate treatment. Based on the setting of the output dial, either milliamp or micro amp current output is produced (i.e., blue zone on the dial is milliamp).

Laser therapy is administered using a 650 nm, 5 mW laser contained in the device. Three modes of treatment are available, selected by using a toggle switch located between the grounding plate and stimulation button: on (continuous laser beam), pulsed (10 Hz pulsed laser beam) and off (no laser beam). The device is successfully in laser mode when the yellow light indicator on the top of the unit is on.

With its ergonomic design and single grounding plate, this device can easily be used with either the left or right hand. Probe tip is removable for easy cleaning. Accessories include a hand ground pole with attached wire, 9-volt battery, small screwdriver (for adjusting sound level), carrying case, and instructions. There is a 1-year warranty on this device, hand-held ground pole not covered under warranty.

Note: Conductive gel may clog laser probe opening and diminish output. Use of gel with this device is not recommended.

Specifications

500 ohm test load

Output channels: One

Volts & current

Normal dial: 22.5 volts, 0 to 45 milli amps,

Blue zone: 11.0 volts, 0 to 2 micro amps

Pulse width: 260 microseconds (µS)<9/>

Pulse shape: Asymmetric biphasic square wave with negative spike

Pulse modes: Continuous

Laser wavelength: 650 nm

Maximum laser power: 5mW

Skin impedance monitoring

Sound and green light indication,

Laser operation

Yellow light indication

Power source: 9 volt battery

Size, weight, colour: 9.0" x 3.5" x 1", 100gm, beige

IMPORTANT Please Read - Disclaimer: Even though every effort has been taken to ensure accuracy of all data, descriptions and specifications, we cannot guarantee that they are accurately correct. If you are unsure of any aspect of our products, please do not hesitate to contact us and we will gladly assist you.

NOTE: These products are intended for use by qualified practitioners only and therefore no responsibility will be taken for self medication. The purchaser will accept full responsibility for the safe and proper use of these devices.
